称重控制仪表

产品编号：CNC24244926

产品详情
产品属性

型号： CI-500A
提供加工定制：否

“称重控制仪表”的详细描述:

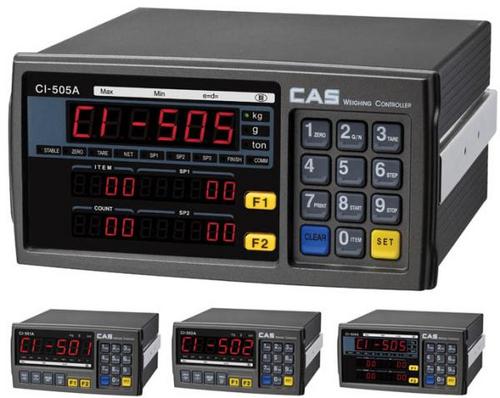

CI-500A Series

- High-legible LED display & sub display
- High speed A/D conversion & display resolution
- Terminal block installed & various interface ports

Model		CI-501A	CI-502A	CI-505A	CI-507A
LoadcellExcitation		DC 10V
LoadcellConnection(350 Ω)		8 ea(4 & 6 wired )
ZeroAdjustmentRange		-0.6mV ~ +42.0mV
InputSensitivity		0.45uV /D
InternalResolution		1/520,000
ExternalResolution		1/10,000
A/DConversionRage		200 times/sec
Display	Unit Display	kg, g, ton
	Weight Display	6-digit LED(Letter height: 25mm)
	Auxiliary Display	-		4ea	5ea
Power		AC 100~250V, 50/60Hz
Operating Temp.		-10 ℃ ~ 40 ℃
ExternalRelayInput		4ea
ExternalRelayOutput		-	6ea
Product Size(mm)		195(W) x 189(D) x 98(H)
ProductWeight(kg)		Approx. 1.8
